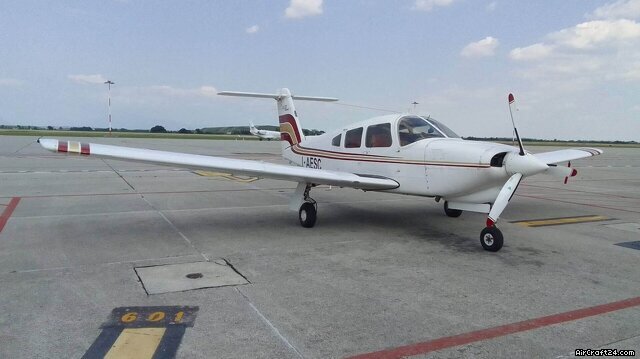

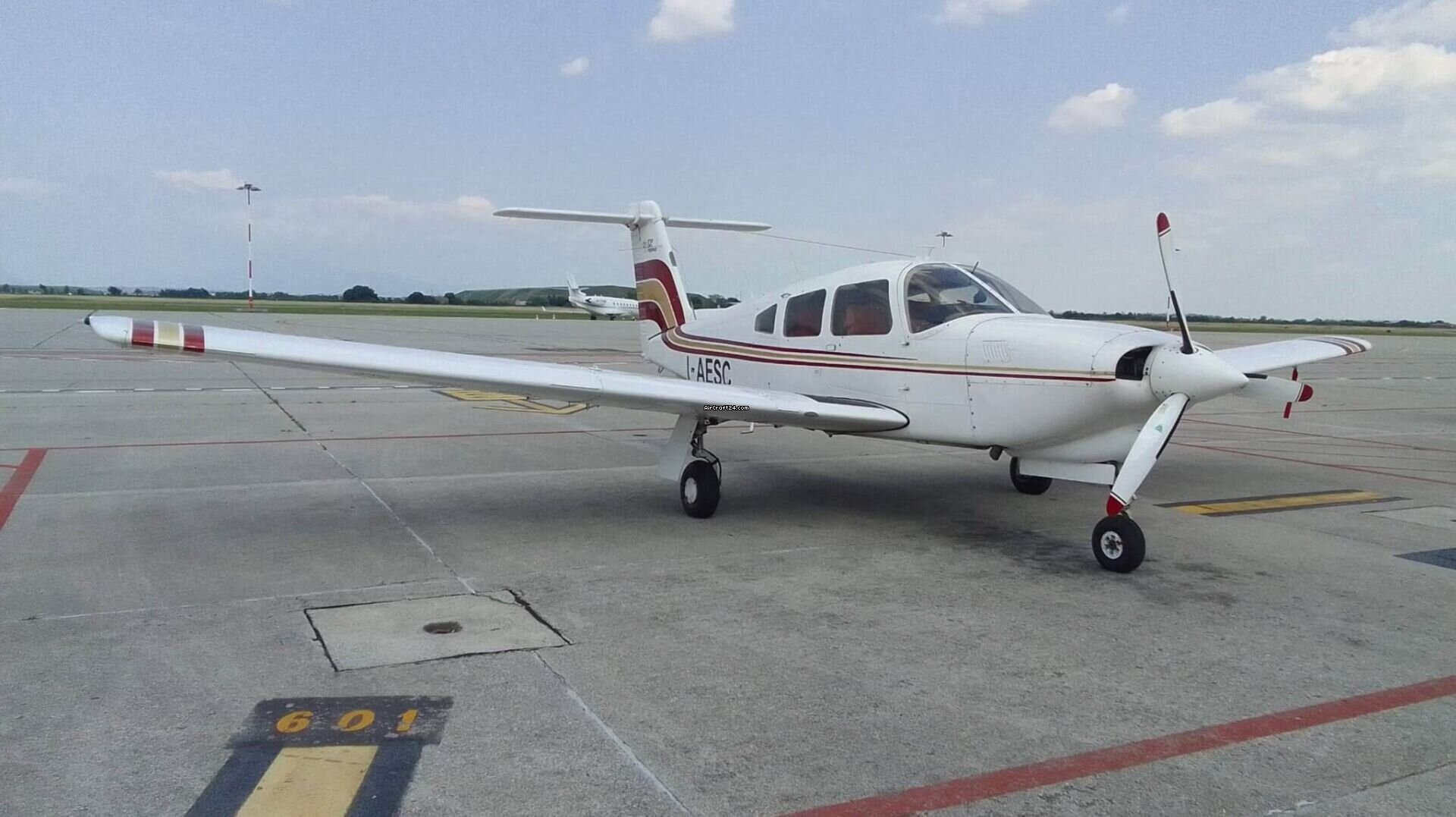

Piper PA-28RT-201T Turbo Arrow IV |
ZAR 1.305.661
€ 68.000 |
Overview
| Base data | | Type: | Single Prop | | Make: | Piper | | Model: | PA-28RT-201T Turbo Arrow IV | | Year built: | 1979 | | Registration No.: | I-AESC | | Serial No.: | 28R-7931095 | | Location: | Italy, Brescia Montichiari | | Total Time (TTAF): | 3510 h | | Price: | € 68.000
(~ ZAR 1.305.661) | | Full details |
| Seller |
Aeromeccanica S.A
Aeroporto Cantonale di Locarno
6596 Gordola
Switzerland
Tel: +41-91-2103128
Fax: +41-91-7450037 |
| Contact seller |
|
|
|
Full Details
| Base data | | Type: | Single Prop | | Make: | Piper | | Model: | PA-28RT-201T Turbo Arrow IV | | Year built: | 1979 | | Registration No.: | I-AESC | | Serial No.: | 28R-7931095 | | Location: | Italy, Brescia Montichiari | | Total Time (TTAF): | 3510 h | | Price: | € 68.000
(~ ZAR 1.305.661) |
| Avionics | Garmin GMA340 Audio Panel / Marker Beacon / Intercom
Garmin GNS430 WAAS NAV-COM-GPS
Aspen EFD1000 Primary Function Display / HSI, Installed in 2022
MD41-14B4 Annunciator Panel
Avionics International Supply AIS80-1 CDI Switch Unit
King KX155 NAV-COM
King KI209 VOR LOC-Glide-Slope Indicator
King KN62A DME
King KR86 ADF
Becker BX6403-2 Mode S Transponder
ACK A30 Mod 3 Blind Encoder
Altimatic Autocontrol IIIB Autopilot
Electric Pitch Trim
S-TEC 60 Pitch Trim Stab. STC SA5110SW-D
S-TEC Selector Alerter Panel
WX8 Storm Scope
True Speed Indicator
Second Attitude Indicator
Co-Pilot Altimeter
Astro Tech Digital Clock/OAT Indicator
Kannad 406 AF Compact ELT with Remote Switch, Installed 07/09/2012
2 LED Stripes Glareshield Panel Lights |
| Exterior | Original Piper design
Juneau White
Matador Red Trim
Las Vegas Gold Accents
Good condition |
| Interior | Red velour with black side inserts, red carpet
All 4 seats equipped with headrest
Front adjustable seats
Shoulder Harness Seat Belts
Original, in good condition |
| Other remarks | Imported in Italy in 1988
Well maintained and hangared Arrow
Under CAMO
Serial Number: 28R-7931095
Previous Registration: N500DS
TT: 3510 hrs
Engine Continental TSIO-360-FB1A, S/N: 211843
TT: 3510
TSOH: 1774 (304 hours since shock load inspection)
Prop Strike occurred in 2021.
Engine Shock Load Inspection completed at Engine TSOH: 1469 (305 hours ago!)
Engine overhauled: in 2018
TBO: 1800 hours
With 10% tolerance extension, there are around 206 hours left to the TBO
MT Propeller 3 Bladed Composite Blades, MTV-2-D188-30D, S/N: 211843
TT: 305 hrs
Installed new in 2021
Woodward Governor installed with the new propeller in 2021
MTOW: 2900 LBS (1315 kg)
Empty Weight: 1872 LBS (849 kg)
Propeller Strike occurred in 2021, after that engine had a shock load inspection and propeller was replaced with new MT 3 Bladed Propeller
Annual inspection completed 31/05/2023
Price with overhauled engine: Euro 188,000.00
For Sale in "AS IS WHERE IS" condition, needing annual inspection, propeller governor oil leak repair, ARC
Optional engine priming system
Auxiliary power receptacle
Heated pitot
Vacuum System (21CC Vacuum Pump)
Anti Collision Strobe lights
Shoulder Harness Seat Belts
Cabin fire extinguisher
First aid kit
Specifications subject to verification by purchaser |
